low carbon steel tube
"
Rura ze stali niskowęglowej o podwójnych ściankach powlekana PVF
Bundy Tube Bundy Pipe PVF Coated Bundy Tubes Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries. Dimension and specification O.D. mm Thickness mm Weight g/m Assurance pressure kg/cm3 4.76 0.7 70.28 350 6.00 0.7 91.76 350 6.35 0.7 97.75 350 7.00 0.7 108.75 350 7.14 0.7 111.17 350 8.00 0.7 126.31 350 Tolerance O.D. and W.T. +/-0.08mm
SAE J356 Spawana rura ze stali niskowęglowej z kontrolą błysku 15,88 mm OD
15.88 mm OD X 1.24 mm Type -A J356 Welded Flash-Controlled Low-Carbon Steel Tubing Normalized for Bending, Double Flaring, and Beading This SAE Standard covers normalized electric-resistance welded flash-controlled single-wall low-carbon steel pressure tubing intended for use as pressure lines and in other applications requiring tubing of a quality suitable for bending, flaring, beading, and brazing. Material produced to this specification is not intended to be used for
15 ścianki mm grubość J524 bez szwu ze stali rur wyżarzanych dla zginania / płomienny
J524 Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order Table 1- TUBING OUTSIDE DIAMATER TOLERANCE Nominal Tubing OD mm Tolerance ±mm Up to 25.4 0.10 Over 25.4 to 38.1 inclusive 0.15 Over 38.1 to 50.8 inclusive 0.20 Over 50.8 to 88.9 inclusive 0.25 WT tolerance shall be not more than 10% Table 2- CHEMICAL REQUIREMENTS Element % Carbon 0.18 max Manganese 0.30 to 0.60 Phosphpris 0.040 max Sulfur
Rury stalowe bez szwu ze stali niskowęglowej SAE J524 wyżarzane do gięcia i kielkowania
SAE J524 Seamless Low-Carbon Steel Tubing Annealed for Bending and Flaring 1. SCOPE This SAE Standard covers cold drawn and annealed seamless low-carbon steel pressure tu bingintended for use ashydraulic lines and in other applications requiring tubing of a quality suitable for flaring and bending. 2. MANUFACTURE The tubing shall be cold drawn to size and after forming shall be annealed in such a manner as to produce a finishedproduct which will meet all requirements of this
ASME SA179 Bezszwowe rury ze stali węglowej Rury ze stali niskówęglowej ze ścięcia chłodnego do wymiennika ciepła
ASME SA179 Seamless Carbon Steel Tubing: Cold-Drawn Low-Carbon Steel Tube For Heat-Exchanger ASME SA179 seamless carbon steel tubing is engineered for use in heat exchangers and condensers. Renowned for its high durability and ability to withstand extreme conditions, it is a preferred material in various industrial applications. This article delves into its material properties, specifications, key features, chemical composition, mechanical properties, steel grades, applicatio
Rury o podwójnej ścianie z stali o niskiej zawartości węgla z miedzianą powłoką do użytku w motoryzacji
Bundy Tube – Double-Wall Copper-Plated Low-Carbon Steel Tube for Automotive Use Material Overview Bundy tube is a double-wall low-carbon steel tube manufactured by rolling a steel strip into a 720° overlap and copper-brazing the seam. This produces a concentric double-wall tube with a continuous brazed bond between the two walls. For automotive brake and fuel lines, this design offers: The mechanical strength and rigidity of steel The corrosion protection and brazeability of
SAE J526 Tłuszcz stalowy o niskiej zawartości węgla galwanizowany precyzyjnie
SAE J526 Welded Low-Carbon Steel Tubing (Coiled) for Brake & Hydraulic Lines Material SAE J526 tubing is an electric-resistance welded (ERW), single-wall low-carbon steel tube supplied in coils (or straight lengths) for automotive fluid conductor applications where controlled bending, flaring, beading, forming, and brazing are required.Important design note: SAE J526 material is not intended for single-flare applications due to a potential leak path associated with the
SAE J526 ERW Spawana rura stalowa / rura ze stali niskowęglowej do paliwa samochodowego
SAE J526 Welded Automotive Fuel Steel tube Application:covers welded single-wall low-carbon steel tubing intended for generalautomotive, refrigeration, hydraulic, and other similar applications requiring tubing of a quality suitable forbending, flaring, beading, forming, and brazing. size:length--2~12m WT--2~4.5mm OD--16~50mm Manufacture:The tubing shall be made from a single strip of steel shaped into a tubular form, the edges ofwhich are joined and sealed by a suitable

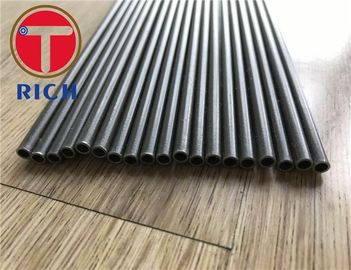

SAE J524 Rura stalowa bez szwu ciągniona na zimno, Rura ze stali niskowęglowej wyżarzana
SAE J524 Cold Drawn Seamless Steel Tubing for Precision and Vehicle Applications Quick Detail: Standard: SAE J524 Seamless Steel Tubing J524 Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring Applications: for Bending and Flaring to auto parts Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order Manufacture: The tubing is cold drawn size and after forming shall be annealed in such a manner as to produce finished product which meet the SAE J524
