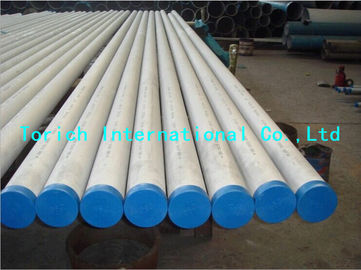

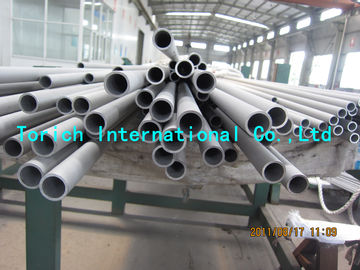

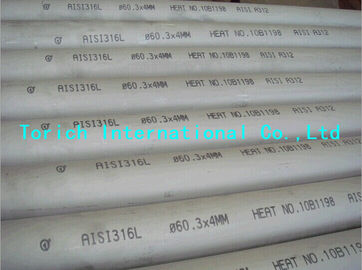

Uniwersalne okrągłe rury ze stali nierdzewnej z certyfikatem ISO 9001
Szczegóły produktu
stainless tube steel
,Rura ze stali nierdzewnej o dużej średnicy
DIN 17456 Ogólnego przeznaczenia Bezszwedzkie okrągłe rurki ze stali nierdzewnej
Niniejsza norma, wraz z DIN 17440 DIN 17441, DIN 17457 i
DIN 1745 (wydanie z lipca 1985) zastępuje DIN 17440, wydanie z grudnia 1972
Zastosowanie:do ogólnego użytku bezszwowych rur i rur okrągłych
| Klasa | Materia | Badanie rozciągania MPa lub N/mm2 | Wzmianki (podobne do JIS) | Możliwość Temperatura | |
| Min Punkt wydajności | Wytrzymałość na rozciąganie | ||||
| X6CrTi12 | 1.4512 | 190 | 390~560 | - |
|
| X6CrAl13 | 1.4002 | 250 | 400~600 | SUS405TP |
|
| X5CrNi1911 | 1.4006 | 250 | 450~650 | - |
|
| X6Cr17 | 1.4016 | 270 | 450~650 | - |
|
| X6CrTi17 | 1.4510 | 270 | 430 ~ 600 | - |
|
| X5CrNi1810 | 1.4301 | 195 | 500 do 720 | - |
|
| X2CrNi1911 | 1.4306 | 180 | 460 ~ 680 | - |
|
| X2CrNiTi1810 | 1.4311 | 270 | 550 ~ 760 | - |
|
| X6CrNiTi1810 | 1.4541 | 200 | 500 ~ 730 | - |
|
| X5CrNiNB1810 | 1.4550 | 205 | 510~740 | - |
|
| X5CrNiMo17122 | 1.4401 | 205 | 510~710 | SUS316TB |
|
| X2CrNiMo17132 | 1.4404 | 190 | 490 ~ 690 | SUS316HTB |
|
| X6CrNiMoTi17122 | 1.4571 | 210 | 500 ~ 730 | SUS321TB |
|
| X2CrNiMoN17133 | 1.4429 | 295 | 580~800 | - |
|
| X2CrNiMo18143 | 1.4435 | 190 | 490 ~ 690 | - |
|
| X5CrNiMo17133 | 1.4438 | 205 | 510~710 | - |
|
| X2CrNiMoN17135 | 1.4439 | 285 | 580~800 | - |
|
-
Części samochodowe ASTM A513 Rury stalowe spawane na zimno z produkcją DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
Średnica 25 mm Jasny, bez szwu stalowa rura do systemów hydraulicznych
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Precyzyjna stalowa rura bez szwu fosforanowo-fosforanowa do układów hydraulicznych
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Precyzyjne bezszwowe ocynkowane rury stalowe DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
