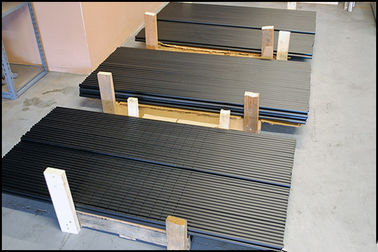

SA213 Alloy Steel Pipe T5 T9 T11 T12 T22, Rury wymiennika ciepła ze stali węglowej
Szczegóły produktu
alloy steel seamless tube
,seamless alloy steel pipe
Stalo stopowe klasy T5 T9 T11 T12 T22
Wyroby z stali stopowej i rur wymiennik ciepła SA213
| Stopień stali | C | Mn | P | S | Tak. | Kr | Mo. |
|
| maks. | maks. | maks. | maks. | maks. | min |
|
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| Stopień stali | Wytrzymałość na rozciąganie | Siła wydajności | Wydłużenie | Twardość. Maks. |
|
| |
| min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell/Vickers | Rockwell |
|
|
|
| T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB |
|
|
| T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC |
|
|
| T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC |
|
|
-
