JIS G3460 Alloy Steel Pipe for low temperature service

Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: TORICH
Numer modelu: JIS G3460
Szczegóły pakowania: W drewnianych skrzyniach lub sześciokątnych wiązkach w opakowaniu zdatnym do żeglugi
Czas dostawy: 35-45 dni
Zasady płatności: L / C, D / A, D / P, T / T, Western Union, MoneyGram
Szczegóły informacji
Nazwa produktu: Rura ze stali stopowej JIS G3460 do pracy w niskich temperaturach. Model nr: JIS G3460
Technika: Rysowane na zimno Obróbka powierzchniowa: Naoliwione
Rodzaj: Bezszwowy Stop czy nie: nie stop
Kształt przekroju: okrągły Podanie: Do kotłów, przegrzewaczy, rurociągów parowych kotłów

opis produktu

JIS G3460 Alloy Steel Pipe for low temperature service

JIS G3460 STPL380, STPL450, STPL690 Chemical Composition:

Steel Grade Chemical Composition %
C Si Mn P S Ni
STPL 380 0.25 max. 0.35 max. 1.35 max. 0.035 max. 0.035 max.
STPL 450 0.18 max. 0.10~0.35 0.30~0.60 0.030 max. 0.030 max. 3.20 ~ 3.80
STPL 690 0.13 max. 0.10~0.35 0.90 max. 0.030 max. 0.030 max. 8.50 ~ 9.50

-JIS G3460 STPL380, STPL450, STPL690 Mechanical Property:

Steel Grade Tensile strength

Yield point or proof

stress

Elongation %

kgf/mm2

{N/mm2}

kgf/mm2

{N/mm2}

No. 11 or No. 12 test piece No. 5 test piece No. 4 test piece
Longitudinal Transverse Longitudinal Transverse
STPL 380 39 {382}min. 21{206} min. 35 min. 25 min. 30 min. 22 min.
STPL 450 46{451} 25{245} min. 30 min. 20 min. 24 min. 16 min.
STPL 690 70{686} 53{520} min. 21 min. 15 min. 16 min. 10 min.

Product Pictures:

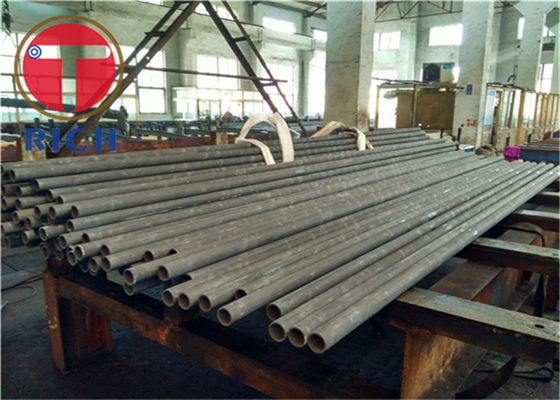

JIS G3460 Alloy Steel Pipe for low temperature service 0

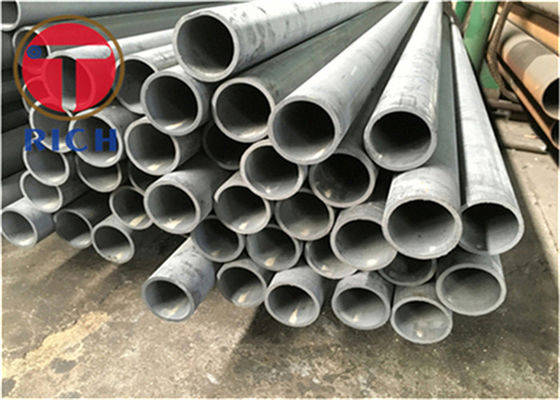

JIS G3460 Alloy Steel Pipe for low temperature service 1





Company Introduction:

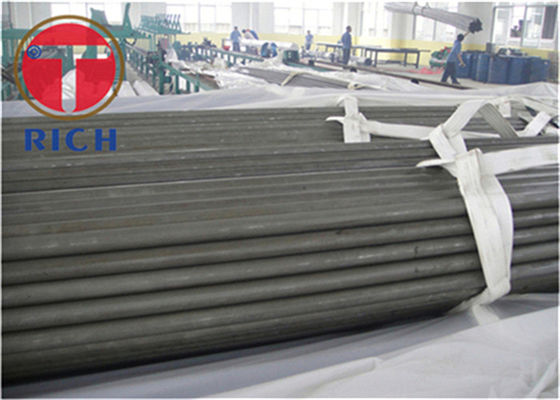

JIS G3460 Alloy Steel Pipe for low temperature service 2

Packaging and Delivery:

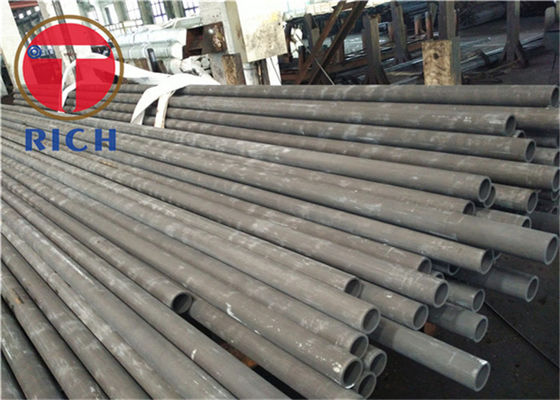

JIS G3460 Alloy Steel Pipe for low temperature service 3

FAQ:

Q: Are you trading company or manufacturer?

A: We are a professional steel pipes materials manufacturer.



Q: How long is your delivery time?

A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.



Q: Do you provide free sampleas?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
